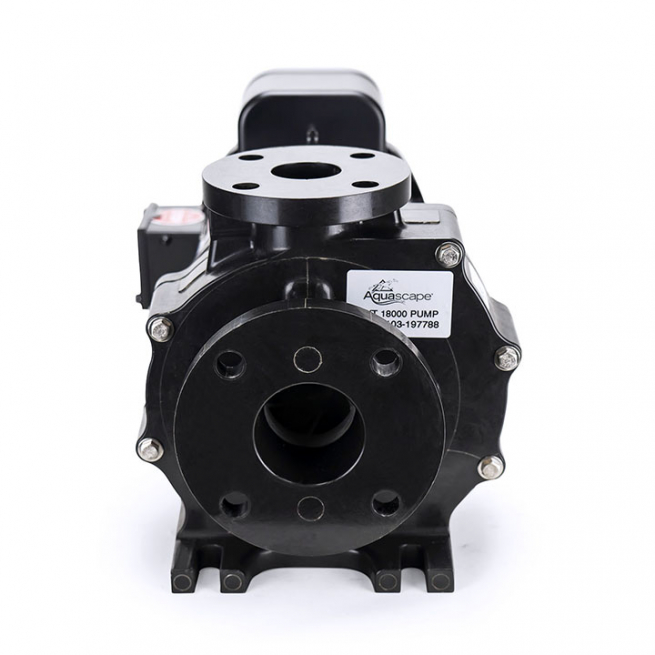

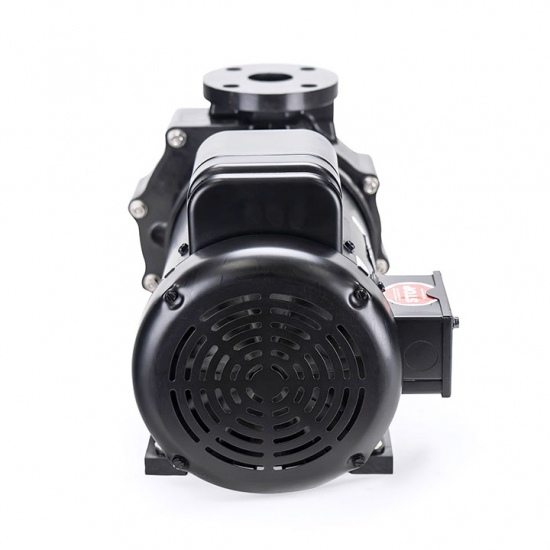

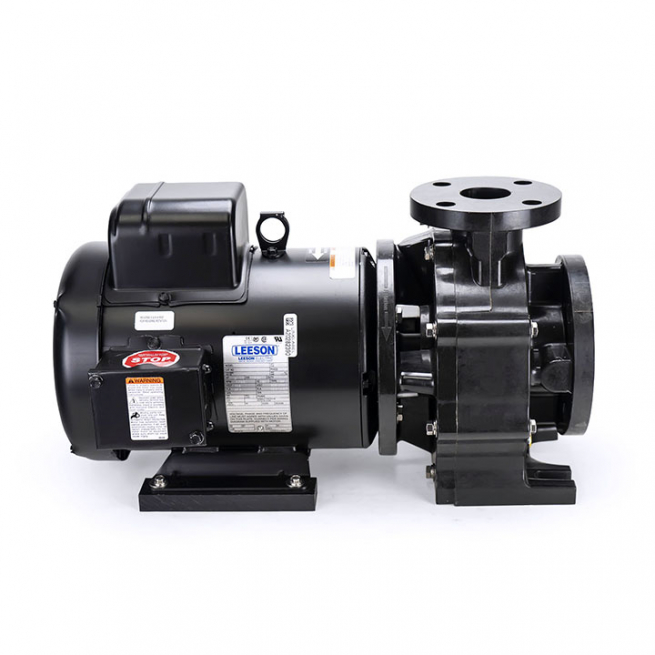

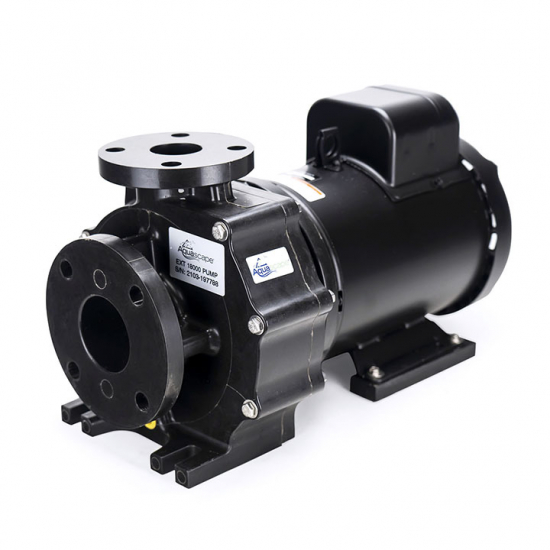

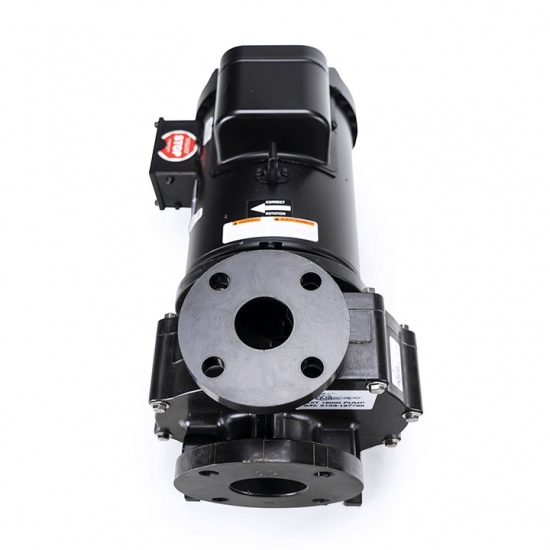

Aquascape EXT 18000 Pond Pump 18400GPH – 45050
Original price was: $3,799.99.$3,419.99Current price is: $3,419.99.
Model Number – 45050
Inlet – 3″
Discharge – 2″
Maximum Flow (GPH) – 18,400
Maximum Head Height (Feet) – 45′
Maximum Power (Watts) – 3,300
Maximum Current (Amps @ Volts) – 30 @ 115V
Maximum Current (Amps @ Volts) – 15 @ 230V
Phase – Single
Motor HP – 3
Motor Enclosure – TEFC
Description
The EXT 18000 Pond Pump is ideal for water feature applications requiring high flow with high efficiency in a non-submersible style pump. This pumps oil-free, low RPM, fan-cooled motor provides quiet operation and a long life. The EXT 18000 Pond Pump does not include an electrical cord. The junction box on the pump motor allows for 115V or 230V electric to be customized on site to meet each projects electrical requirements.
Aquascape has made it easy to simplify the plumbing with the EXT Pump Plumbing Kit (#48027) sold separately.
- Oil-free, low RPM, motor provides quiet operation and a long life
- Totally Enclosed Fan-Cooled Motor (TEFC)
- Junction box located on pump motor allows?115V or 230V electric to be customized on site
- 3 – 4 bolt flanged Inlet
- 2 – 4 bolt flanged discharge
- Semi-closed vane impeller provides?efficient?water flow and can pass spherical solids up to .75" in diameter
Click Here for Instruction Manual
Click Here for EXT Pump Application Drawing
Additional information
Series | EXT |
---|---|
Manufacturer | |
Pond Product Type | Pond Pumps |
Pump Type | |
External Pump Max Flow Rate | |
Max Flow Rate Range | |
Max Flow Rate |
