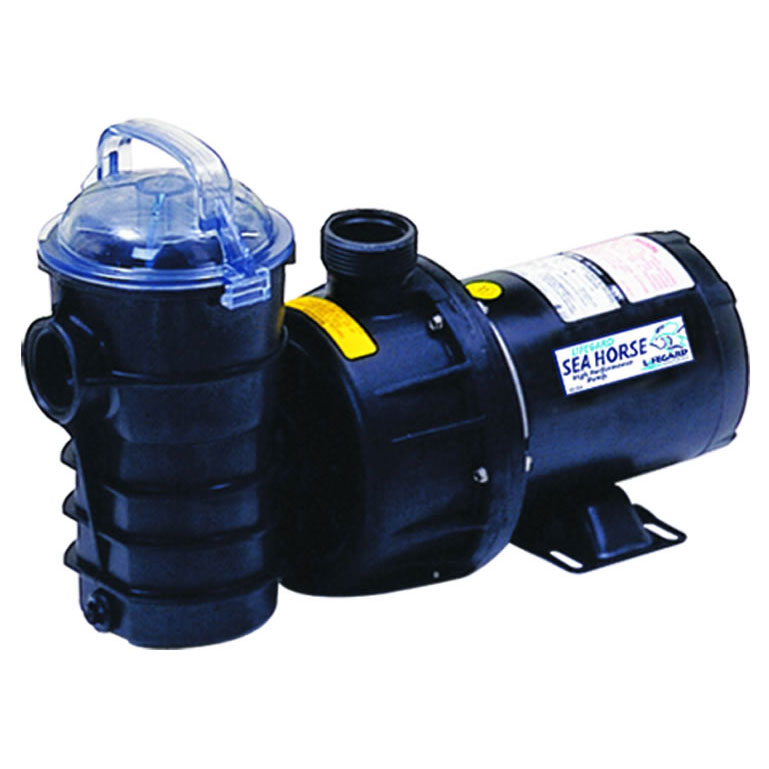

Pentair Lifegard 1/2 HP Sea horse External Pump 3960 GPH – 3960 GPH

Description

The Sea Horse centrifugal pump is designed to operate for years with proper maintenance. The pump housing, bracket diffuser, hair and lint pot and impeller are made from high quality thermoplastic materials. These materials have been selected for their corrosion-resistant nature. When installed, operated and maintained in accordance with these instructions, your pump will provide years of service.

Your centrifugal pump is driven by an electric motor. The motor is directly attached to the pump impeller. As the electric motor turns, it causes the impeller to turn and this causes the water to flow. The water flows into the hair and lint pot inlet and through the basket assembly to prestrain large particles. The flow then enters the center of the pump housing. If the pump does not contain the hair and lint pot assembly, the flow simply enters the center of the pump housing. The flow goes through the impeller and out the pump discharge port.

• Self-priming.
• Fiberglass reinforced.

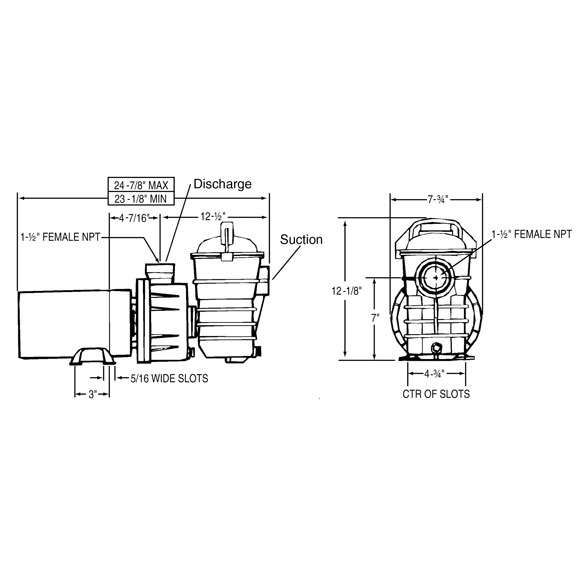

• 1 1/2" suction and discharge ports.
• Clear strainer pot lid and large strainer basket.

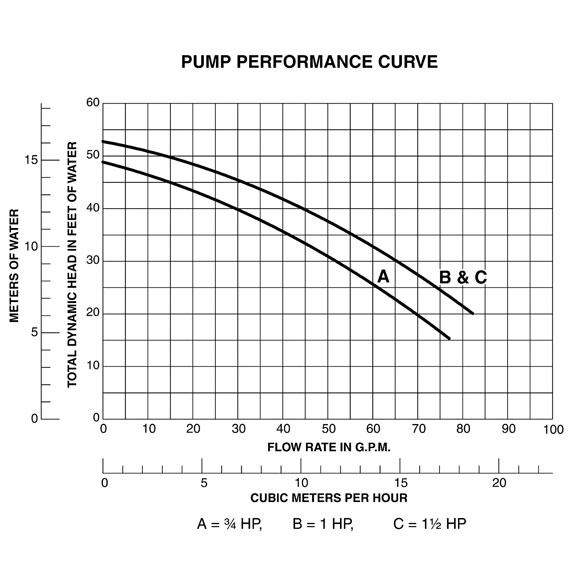

• Unique diffuser and impeller provide excellent pressure performance across wide range of desired gallon per minute flow rates.
• User friendly drain plugs.

Click Here for Instruction Manual
